W4TZB ANTENNAS

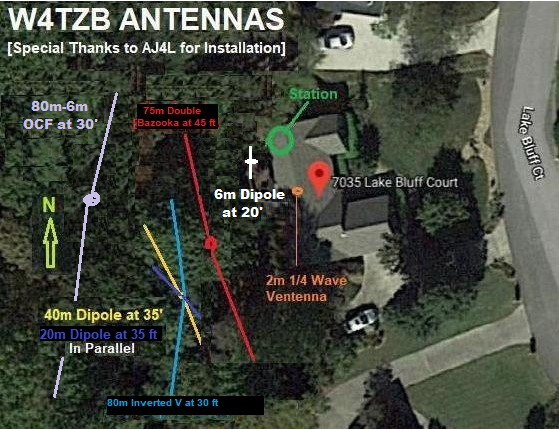

There are 6 "TWIT" (throw wire in tree) Inverted-V antennas in the small woods behind the house:

                                       (For a Different View and Elevation Click HERE)

        Antennas(2)(5)(8):    80m: Homebrew Homebrew ½-Wave Inverted Vee at 30 ft using Balun Designs 1171 Balun
                                    OCF: 80m/40m/30m/20m/15m/12m/10m/6m Palomar 5KW OCF at 30 ft
                                    75m: Ultimax 80m Double Bazooka at 45 ft
                                    40m/20m:  Homebrew ½-Wave Fan Dipole at 35 ft using Balun Designs 1171 Balun
                                    6m: Homebrew ½-Wave Vee at 20 ft
                                    2m: Ventenna on Roof

        ATU:                5:1 ATU with Memories built into the Expert/SPE 1.5K-FA amplifier.

        Remote Sw:     SPE AM-01/6

       Feedline:           DXE-400max  With Alpha Delta Surge Protectors (3)  and Palomar Engineers Maxi-Choke isolator.

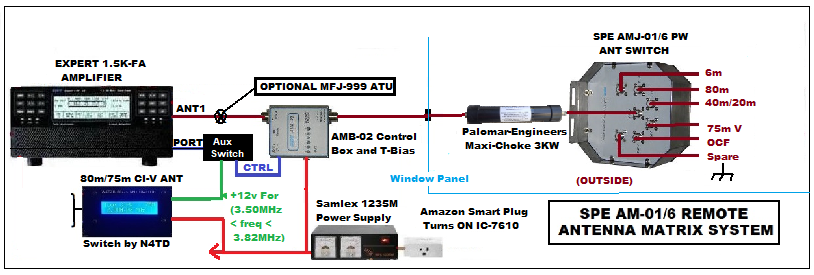

SPE remote antenna switch allows selecting 1 of 6 antennas with a single coax carrying the DC power and the control signals.

For information about the 80m/75m CI-V ANT Switch and the AUX Switch ←Click Link

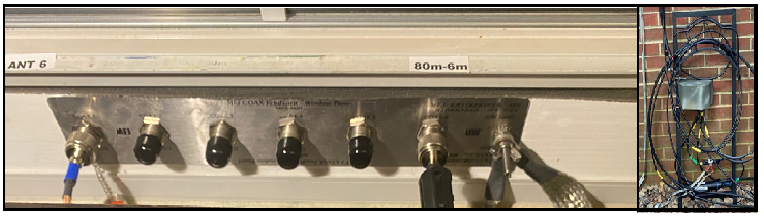

MFJ-4601 Window Panel and SPE Remote ANT Switch Relay Box Below Window
